Impact Crusher

About Impact Crusher:

Impact crusher is new product designed by our company after absorbing the advanced technology home and abroad. This kind of crusher can crush many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP. It has the features of high ratio of crushing, high efficiency of crushing, easy to maintenance, etc. The final products are with cubic shapes and are the ideal equipments for construction the highway and water and electricity construction. In addition, impact crushers are more suitable to process granite, limestone, bank gravel etc. in the area of highway construction, water conservancy project and architecture.

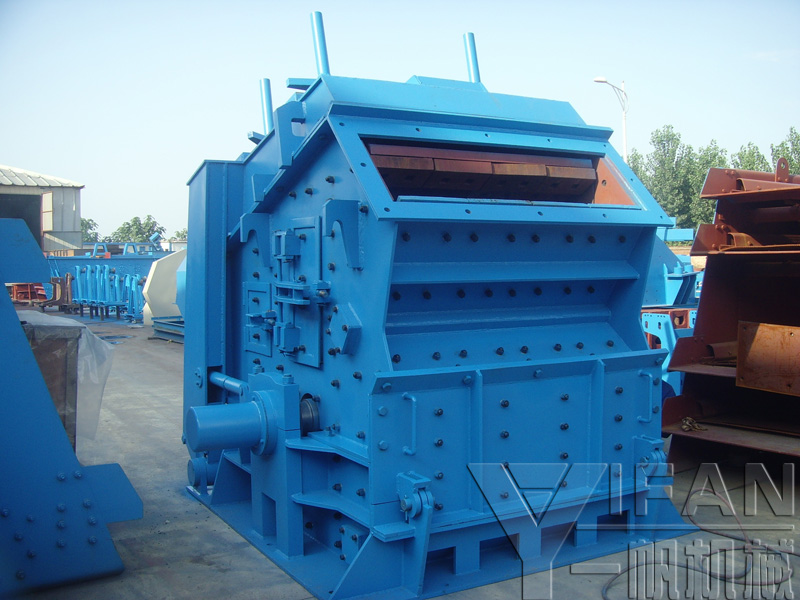

PF Impact Crusher

PF Impact Crusher

PF Series Impact Crusher has such advantages as: simple in structure, large crushing ratio, low energy consumption, high output, light weight, cubic final product, and it is usde in mineral processing, chemical, cement, construction, refractory material, ceramics, glass, etc, such industrial sector for midium, fine and medium-hard materials. Eg: limestone, clinker, slag, carbon coke, coal etc. PF Series Impact Crusher has larger crushing ratio, and can make full use of the high-speed impacting energy of the entire rotor. However, due to the blow bar is easily to wear, so it is restricted in hard materials. So Impact Crusher is mainly usde in coarse, midium, and fine crush, such as, limestone, coal, Calcium Carbide, quartz, dolomite, sulfuration iron ore, gypsum, chemical raw material etc, under midium hard brittle material. the ideal size of PF Series Impact Crusher is from 100-500mm, the max feed size shouldn't exceed the specified value. Users can adjust the space between the hammer and Impact plate, components of the machine, then get the final product.

PF Impact Crusher Project Example

PF Impact Crusher Project Example

Impact Crusher Working Principle:

PF Series Impact Crusher use impact energy to crush materials. When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed, then discharged from the discharge port. Users can adjust the space between Impact Rack and Rotor Support, and then get to the expected size.

Impact Crusher Features and Benefits:

1. Many cavity to crush, suitable for crushing hard rock.

2. Low and big feed opening make the production line easy to arrange and increase the size of feeding material.

3. New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.

4. High-chromium plate hammer, unique Impact plate, especially for hard rock crushing, high efficiency and energy saving.

5. Hard stone crushing, high efficiency and energy saving.

6. Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.

7. the shape of the products are cube, the discharge opening size can be adjusted.

8. Simplify the Crushing process. 9. Hydraulic start-up which is convenient for maintenance and replacement of wear-parts.

Impact Crusher Data Parameters:

Model Rotor Spec(mm) Max Feed Edge(mm) Motor Power(kw) Feed Opening Size(mm) Capacity(t/h) Overall Domensions(L×W×H) (mm) Weight(t)
PF-1007 Φ1000×700 300 37-55 720 x 400 30-50 2370×1540×2630 9.3
PF-1010 Φ1000×1050 300 55-75 1070 x 400 50-80 2400×2250×2630 11.6
PF-1210 Φ1250×1050 350 110-132 465 x 1160 70-120 2640×2370×2890 14.5
PF-1214 Φ1250×1400 350 132-160 465 x 1500 90-160 2640×2720×2890 17.16
PF-1315 Φ1320×1500 500 160-200 990 x 1600 120-200 3510×3040×3020 20.2
Note:The capacity is total tons per hour passing through crusher  at open circuit when crushing medium and below hardness material and bulk density with 1.6x10³kg/m³.Capacities are relative to physical character and type of feeding,feeding size and composition and so on.
