Hydraulic Cone Crusher

CCH series hydraulic cone crusher adopting world advanced technology is designed and made through to be the crusher of world advanced level. it is widely used in metallurgical, architectural, water and electricity, traffic, chemical, architectural material industries. It is suitable for crushing varies of mid hard and above mid hard ores and rocks.

Cone Crusher

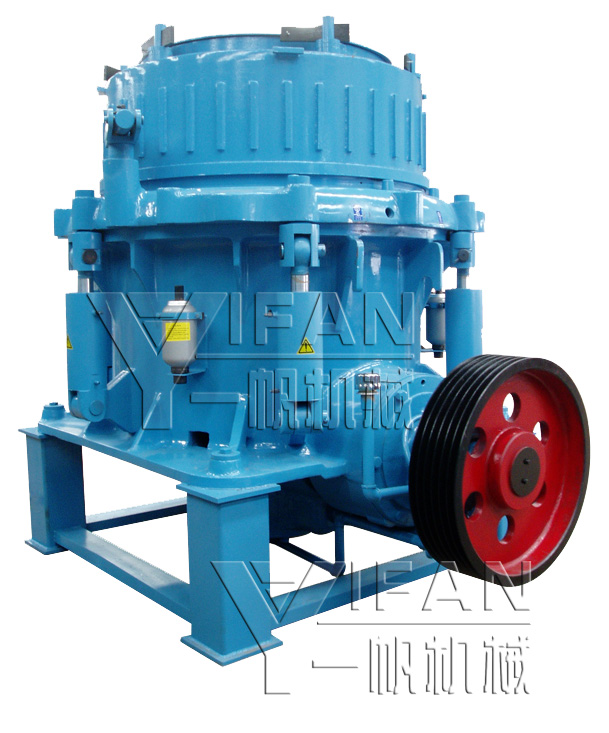

 CCH hydraulic cone crusher

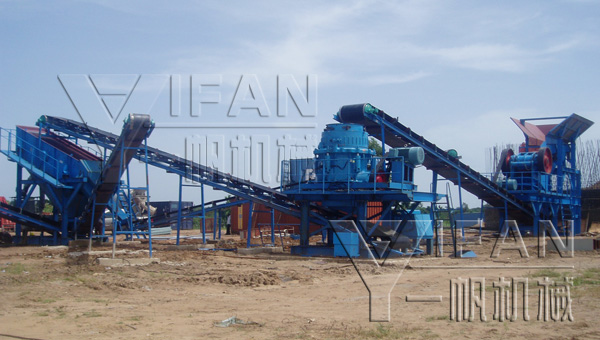

SMH-hydraulic Cone Crusher Project stone product line

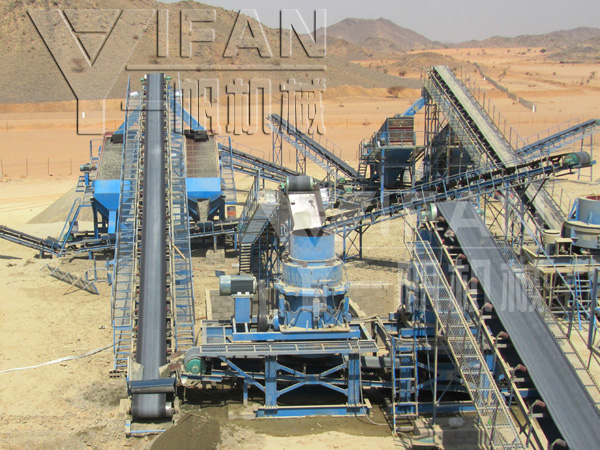

CCH-hydraulic Cone Crusher Project stone product line

Features of Our CCH hydraulic cone crusher:

CCH Series high efficiency Hydraulic Cone Crusher has a better performance compared with other ordinary Hydraulic Cone Crusher.

1.Less spare part consuming and low operation cost:Advanced crushing principle and technical data, reliable operation and low operation cost. All parts of the crusher have anti-wearing protection, which can make the life time of spare parts increased by 30% and the maintenance costs decreased to the lowest. The crusher avoids the disadvantages of impact crusher like low average crushing ratio, large energy consumption, fast abrasion of hammer, impact plate and lining board.

2.between-layer pressuring crushing and better finished product shape:The crusher adopts between-layer pressuring crushing principal and the suited turning speed, not the traditional single particle crushing principal. The special crushing cavity can makes the crusher crush materials selectively, thus the proportion of fine product and products of cubic shape be increased distinctly and products of lump size decreased by a large extent.

3.A high crushing ratio and production efficiency:the connection of higher turning speed and stroke makes the rated power and passing capacity improved greatly and the crushing ratio and capacity increased.

4.Hydraulic protection and hydraulic cavity clearing, high automatization and less stop production and repairing time:the discharge opening adjusted by hydraulic and overload protection makes performance of the crusher increased by a large extent, the maintenance and operation easier, the repairing time shorter.; the bidirectional metal releasing hydraulic vat makes slab pass through crushing cavity;the crusher can discharges materials automatically when the hydraulic works under the conditions of iron passing and instantaneous overloading, thus there is no trouble of stopping the crusher to discharge materials by hand.

5.Thin oil lubrication makes the life time increased:Unique design of thin oil lubrication system prolongs life time of the crusher, high performance and not touchable labyrinth airproof part blocks off the dust and remove the common disorders like the mixture of oil and water in spring cone crusher.

6.Manifold crushing cavity, flexible application, strong adaptability:It is only need to change fixed cone lining board and movable cone lining board; the type of crushing cavity can be changed from standard coarse cavity to short head fine cavity, which can meet various kinds of need. 7.Easy maintenance and operation:All parts of CCH Hydraulic Cone Crusher can be assembled, disassembled and repaired from the top and side part, including the fixed cone and movable cone. For the changing no need to disassemble the crusher body and fasten the bolts. Hydraulic motor makes the performance of crusher better.

8.The crusher can provide customers a higher capacity, better product shape, and easy be operated.

Technical data of Our CCH hydraulic cone crusher:

Model Type of Cavity Max Feeding Size(mm) Discharge Range(mm) Motor Power(kw) Capacity(t/h)--open circuit, closed discharge(mm)
9 13 16 19 22 26 32 38 51 63 76 89
 CCH639 C 160 22-33 75-90         120 130 150
M 130 13-26   65 85 100 120 130
F 50 9-19 40 60 80 90
CCH651 EC 260 26-51 185-200           250 290 340 395
C 220 19-51       182 209 236 279 334 365
M 150 16-38     125 140 165 220 275 330
F 80 9-22 70 90 115 130 150
CCH667 EC 315 38-24 250-280               555 649 766
C 230 26-64           366 430 468 629 657
M 205 22-52         266 299 348 393 451
F 180 16-38     188 212 234 267 305 337
CCH684 EC 450 38-89 400               890 1179 1380 1475 1566
C 350 32-76             800 850 1100 1288 1398
M 320 26-63           612  735 815 990 1137
F 268 19-52     376 412 500 620 725 867

Technical Data of the Short head hydraulic cone crusher :

Model Type of Cavity Max Feeding Size(mm) Discharge Range(mm) Motor Power(kw) Capacity(t/h)--open circuit, closed discharge(mm)
3 5 6 9 13 16 19 22 26 32 38
 CCH639D C 70 6-19 75-90     59 68 96 110 130
M 51 5-16   45 59 68 96 110
F 35 3-13 30 45 50 65 90
CCH651D C 89 9-22 185-200       100 120 175 210
M 70 6-16     105 130 160
F 54 5-16   80 90 110 135 160
CCH667D EC 133 13-26 250-280         280 310 340 370 390
C 133 10-26       210 280 31 340 370 390
M 89 6-19     130 168 215 260 290
F 70 6-13     130 168 215
CCH684D EC 203 16-26 400           510 600 630 680
C 178 13-26         455 488 552 600 620
M 133 10-19       355 420 460 530
F 105 6-16   220 310 375 428
Note:

1.The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x103kg/m3. Capacities are relative to physical character and type of feeding, feeding size and composition and so on.

2.CCH651(D)and CCH684(D)standard configuration includes discharging opening of hydraulic locking and hydraulic motor adjustment, and you can choose CCH639(D),CCH651(D)as matching products.

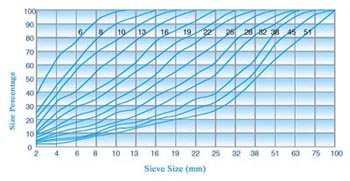

Particle size distribution curve

Note:The capacity charts is for properly using CCH cone crusher and get to its capacity. Crusher is component of mining production line, so it’s character result from feeder, conveyor, screen, electric motor, drive part, surge bin. Noticing follow factors can enhance crusher capacity and character. 1、choose the right crushing cavity according to the materials be crushed. 2、the feeding size should be right. 3、Materials distributed equally around the round of crushing cavity. 4、Automatically control system. 5、Discharge opening of cone crusher works normally. 6、the model of belt conveyor be seasoned with the max processing ability of the crusher.
